고전류제품 Modular IGBT rectifier 690KW/module
본문
- I-Kraft™ for renewable hydrogen production.
- Modular construction enables flexible power system design tailored to electrolyzer energy requirements.
- We design the power system based on production specifics and grid requirements, considering what’s the most economical solution over lifetime operation.
- Smooth DC current flow towards the electrolyzer.
- Dynamic operational conditions of the power supply.
- Keep your production running in case of run-time deviatio.
- I-Kraft is an active front end, IGBT based power supply, providing high quality power output with minimum power losses in all operation modes. It removes the need for additional accessories for meeting grid requirements and electrolyzer power quality specifications.
- 690kW modular construction enables flexible power system design tailored to electrolyzer energy requirements — giving possibility to adapt the rectifier to the actual power requirement. By clustering the power modules, scaling up of operations can be achieved, with a simplified transformer design.
Specification

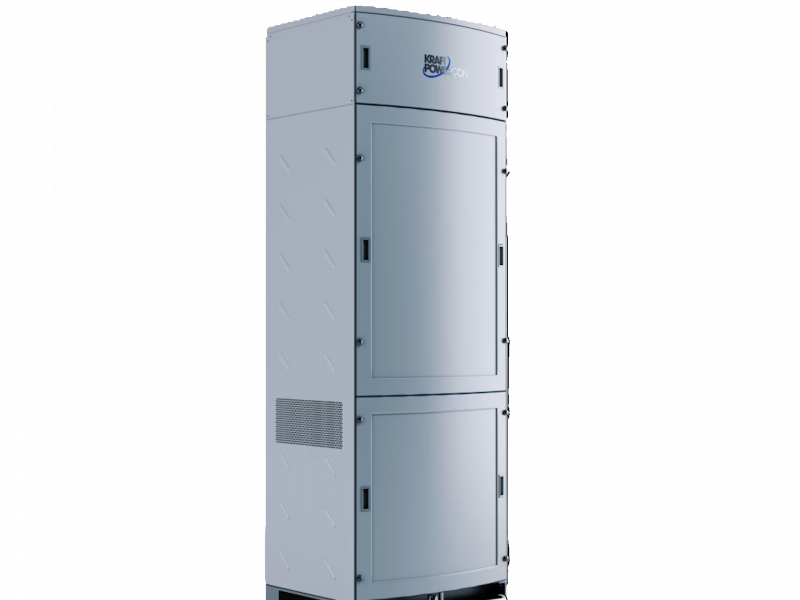

- Rectifier module
- Max power: 690KW / module with DC output at 640V or higher
- Max output V: 1150V*
- Min output V: 640V*
- THDi: <5%
- Current ripple: <3%RMS
- Power factor: >0.95
- Efficiency: >98% at 100% load, including filters
- Nominal line frequency: 50/60Hz
- Ambient temperature: -25–40°C
- Cooling: Water cooled power electronics
상세정보

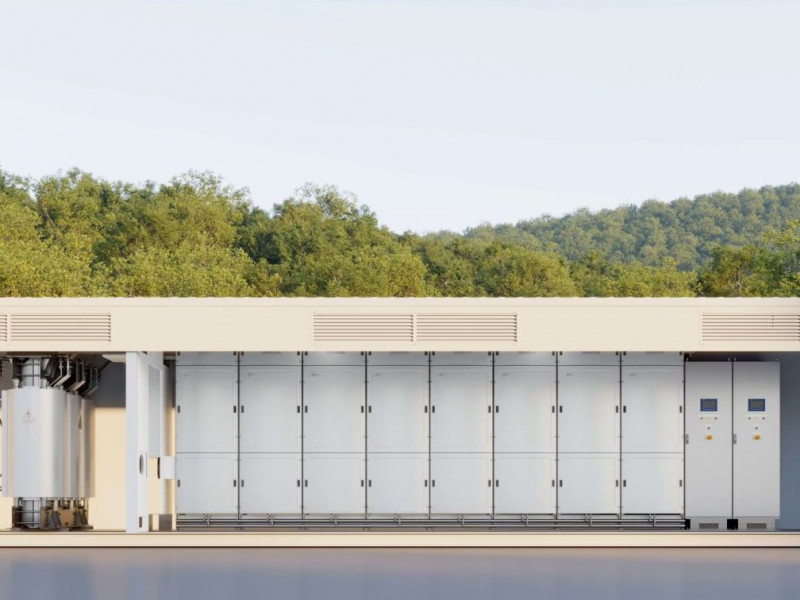

1 to 8 modules per cluster, governed by same controller via fiber optics connections
Layered control architecture
Power module controller ensures that the power is delivered at any time in a safe manner. User control system, an interface dedicated to operator and service technician, with comprehensive logs for analysis and diagnostics.
Control system
Layered control architecture:
power module controller, ensures that the power is delivered at any time in a safe manner
- user control system, an interface dedicated to operator and service technician, with comprehensive logs for analysis and diagnostics
Control precision
1% of rated current
Transformer
3 phase isolation/step-down transformer (secondary voltage of 400VAC for a system rated 1000VDC)
Housing

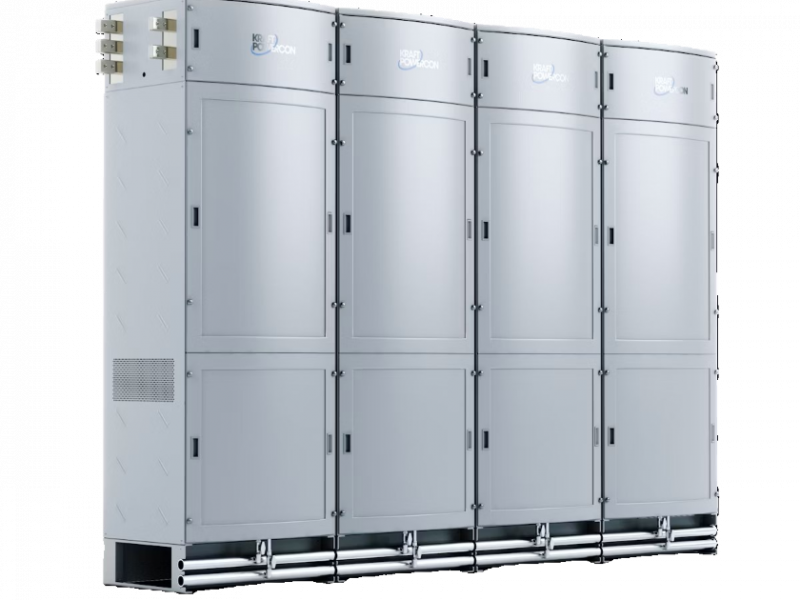

The module housings are frame-based and feature protective, removable panels. Up to four modules can be installed side by side.
Pre-charge rectifier
Included in system and synchronized with AFE modules. It can be used also as autonomous polarization rectifier
